The cost of a switchboard upgrade in NSW comes down to what sits behind the panel, not just the panel itself. Two homes on the same street can receive very different quotes because one may need a straightforward board replacement while another requires new consumer mains, metering changes or asbestos-related work before the new circuit protection can be installed.
This guide explains what an electrician is actually pricing when assessing a switchboard, which parts of the job can increase the cost, and what homeowners in Ballina, Lismore, Byron Bay and across the Northern Rivers should ask before accepting a quote.
How Much Does a Switchboard Upgrade Cost?
There is no single cost for a switchboard upgrade because the scope can vary considerably between properties. A straightforward single-phase switchboard replacement is very different from a job that also requires additional circuits, asbestos-related work, new consumer mains, metering changes or a three-phase supply upgrade.
An electrician should inspect the existing switchboard, mains and meter position before confirming what work is required. This provides a clearer picture of the scope and makes it easier to compare quotes based on what is actually included.
What Drives the Price of a Switchboard Upgrade?
Seven factors have the biggest influence on the cost of a switchboard upgrade. Comparing a quote against these factors can help explain why one price is higher than another.
Circuit Count and Board Size
Every circuit needs suitable circuit protection, and a modern switchboard may require considerably more separation than an older board typically provided. A house with four circuits on ceramic fuses, for example, may end up with ten or twelve protected circuits after an upgrade, which affects both the enclosure size and the labour involved.
Condition of the Existing Board and Its Wiring
Older rubber or fabric-insulated cable can become brittle with age. If deteriorated wiring is discovered while the existing switchboard is being replaced, affected sections may need to be extended or replaced back to sound cable.
This additional work can increase the final switchboard replacement cost and may not be obvious until the existing equipment is inspected or removed.
Asbestos Backing Boards
Older switchboards may be mounted on asbestos-containing backing boards. If asbestos is identified, its presence can add another component to the scope and cost because appropriate removal and disposal requirements need to be followed.
For this reason, the condition and material of the existing backing board should be considered when comparing switchboard upgrade quotes.

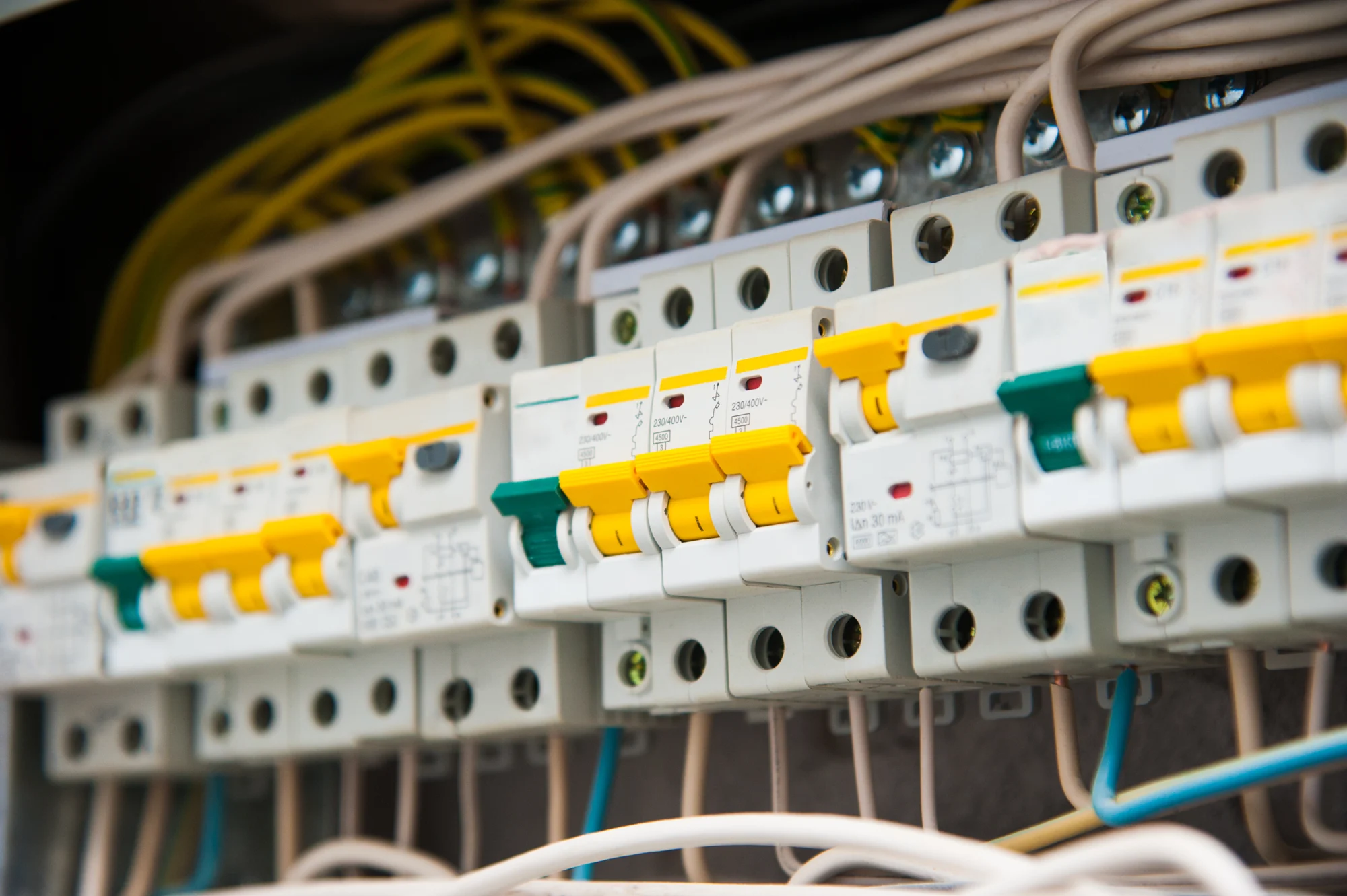

Safety Switches and Surge Protection
Modern switchboard upgrades may require existing circuit protection to be brought up to current standards. For domestic and residential installations, the Wiring Rules require 30 mA RCD protection for final subcircuits, with RCDs installed at the switchboard where those circuits originate.
RCDs, commonly called safety switches, are designed to reduce the risk of electric shock by disconnecting the electricity supply when certain faults are detected. The number and type of protective devices required will depend on the existing installation and the scope of the upgrade.
Optional additions such as whole-home surge protection can also affect the materials cost.
Whether Level 2 Network Work Is Involved
Some switchboard upgrades extend beyond work inside the property and involve the connection between the premises and the electricity network.
A Level 2 Accredited Service Provider (ASP) is authorised for specified service and connection work between the distribution network and the point of connection to the premises. Depending on the project, this may include work associated with service lines and the energisation of new or altered connections.
If a switchboard project also requires eligible Level 2 work, involving a suitably authorised provider from the beginning can simplify the scope and reduce unnecessary handovers between contractors.
Single-Phase or Three-Phase Supply
A three-phase upgrade may require a larger switchboard, three-pole main switching and, depending on the existing installation, changes to the mains or electricity connection.
Properties adding high-demand electrical equipment such as ducted air conditioning, workshop equipment or faster EV charging may need their available electrical capacity assessed. Whether a three-phase upgrade is actually required depends on the property’s existing supply and expected electrical demand.
Where supply work is required, that part of the project can add significantly to the overall switchboard upgrade cost.
Access and Meter Box Location
A switchboard mounted inside a hallway cupboard, behind a finished wall or in another difficult-to-access location may take longer to work on than one in an accessible external meter box.
Where relocation is required, the scope may also include additional cabling, patching and a new enclosure. Access, cable routes and the condition of the surrounding structure can therefore affect both labour and materials.
Do You Need a Level 2 Electrician for a Switchboard Upgrade?
Not always. Some switchboard work can be completed by a licensed electrical contractor without requiring Level 2 network work.
A Level 2 ASP may also need to be involved when the project requires authorised work between the electricity network and the premises, such as certain new or altered connections, service-line work or changes affecting the point of attachment.
Essential Energy explains that an electrical contractor generally works within the premises, while a Level 2 ASP performs authorised work associated with the connection between the premises and the electricity network.
That distinction matters when comparing quotes. If the switchboard upgrade also requires Level 2 work, make sure the quote explains whether that work is included and who will complete it.
Signs a Switchboard Needs Upgrading
For many homeowners, the question of cost starts when they notice signs that the existing switchboard may need attention.
Common reasons to have a switchboard assessed include:
- Ceramic rewireable fuses instead of modern circuit breakers
- Limited or outdated safety-switch protection
- Breakers that regularly trip when several appliances operate at once
- Signs of overheating or damage around the switchboard
- No spare capacity for planned additions such as solar, a battery or an EV charger
- Water, silt or other flood-related damage in or around the meter box
Flood exposure is particularly relevant in parts of the Northern Rivers. NSW Government guidance requires electrical installations affected by flooding to be appropriately inspected and tested before they are considered safe for reconnection.
Electrical equipment affected by water should not simply be switched back on because it appears dry or undamaged. The switchboard, wiring and other affected parts of the installation may require inspection and testing first.
What a Switchboard Upgrade May Include
A useful quote should explain the scope of work rather than simply list the new hardware.

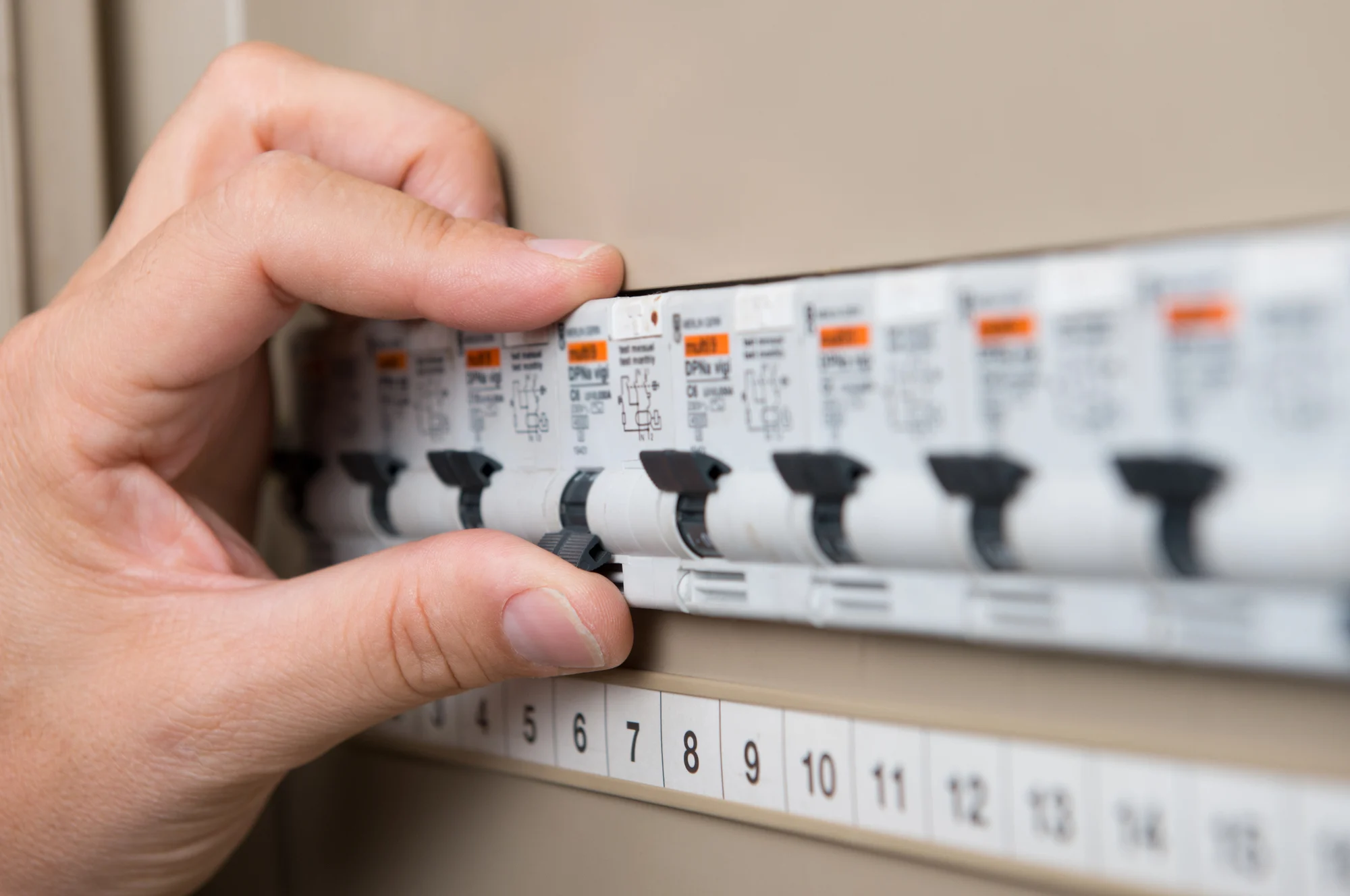

Depending on the existing installation and the agreed scope, a residential switchboard upgrade may include a new enclosure and DIN-rail assembly, appropriate circuit protection, circuit labelling, testing and any associated electrical work required for the upgraded installation.
Electrical wiring work in NSW must be carried out by, or under the supervision of, a licensed electrician. A Certificate of Compliance for Electrical Work (CCEW) is used to show that applicable electrical work has been tested and complies with the relevant requirements.
Where a switchboard upgrade uncovers ageing or damaged cable, it can make sense to assess the wiring and rewiring work at the same time. Landlords may also choose to combine the upgrade with an electrical safety inspection and interconnected smoke alarms, helping address related electrical safety requirements while reducing the need for separate visits.
How to Compare Switchboard Upgrade Quotes
Quotes that appear far apart may be describing different jobs. Four questions can help clarify the difference:
- Does the price include the circuit protection required for the agreed scope?
- Is asbestos backing-board removal included, excluded or subject to inspection?
- Does the scope include any required consumer mains, metering, connection or Level 2 work?
- Does the quote explain the testing, certification and documentation provided on completion?
A quote that answers these questions is much easier to compare with another. A description such as “supply and install new switchboard” provides far less information about what is actually included.
The important figure is therefore not simply the lowest advertised switchboard upgrade cost. It is the cost of completing the work actually required at the property, with the scope clearly identified before the project begins.
Ready to find out what a switchboard upgrade will actually require at your property?
Request a free quote or call 0467 412 232 to arrange an assessment.
Frequently Asked Questions
How long does a switchboard upgrade take?
The time required depends on the existing switchboard and the scope of work. A straightforward residential switchboard replacement may be completed within a day, while projects involving additional wiring, metering, consumer mains or supply changes can take longer. Your electrician should explain any planned power interruption and additional work before the upgrade begins.
Is an old fuse box actually dangerous?
An older fuse box is not automatically unsafe simply because of its age, but older installations may not provide the same level of protection as a modern switchboard. One important consideration is RCD or safety-switch protection. An electrician can assess the existing switchboard, circuit protection and wiring to determine whether an upgrade is recommended.
Do I need council approval for a switchboard upgrade?
A standard switchboard replacement is primarily an electrical compliance matter. However, work involving changes to the electricity connection, metering or network-side equipment may have additional notification, application or authorisation requirements. Your electrician or relevant Accredited Service Provider can identify any requirements that apply to the project.
Will a switchboard upgrade let me add solar or an EV charger?
A switchboard upgrade can provide suitable circuit protection and space for equipment such as solar, batteries or an EV charger, but it does not automatically mean the property’s existing electricity supply can support the additional load. The available supply capacity and requirements of the equipment should also be assessed.
Can one electrician handle both the switchboard and the meter?
It depends on the work required and the electrician’s authorisations. A licensed electrician can carry out electrical work within the scope of their licence, while specified service and connection work requires the appropriate accreditation or authorisation. If both types of work are required, confirm whether the contractor can complete the full scope or whether another authorised provider will need to be involved.
